Type 2 EV AC Male Socket/Inlet For EV Side 16A 32A 250V, Single Phase or 415V,Three Phase with Lid, (Electromagnetic Lock optional) Type 2 IEC62196-2 Connector Car Accessories

	16A 32A Type 2 EV AC Charging male socket for EV side Rated current: 16A/32A Rated voltage: 250V AC, Single Phase or 415V AC, Three Phase for option Operation Temp.:-30℃ ~ + 50℃ IP protection class: IP 54 ( working condition) Product description: This Type 2 AC Charging Socket Vehicle Side, also Know as AC Charging Inlet Socket, can be installed on the Type 2 Electric Vehicle.	Model selection and the standard wiring 16A Single phase; 3 X 2.5mm² + 2 X 0.5mm² 16A Three phase: 5 X 2.5mm² + 2 X 0.5mm² 32A Single phase;3 X 6mm²+ 2 X 0.5mm² 32A Three phase;5 X 6mm²+ 2 X 0.5mm²

IEC 62196-2 (Type 2 Mennekes) Male Socket/Inlet(EV Side) 16A/32A with Lid,

The Type 2 (Mennekes) inlet, is an industry-standard vehicle connector for convenient charging of Plug-in Hybrid Electric Vehicles (PHEV) and Electric Vehicles. Type 2 inlets and plugs support Level 1 and Level 2 charging standard of Europe/ Australia and increasingly global standards

• Meets IEC 62196-2 2010 SHEET 2-llb (Mennekes, Type 2) EU European standard
• Nice shape and easy to use, protection class IP54 (in mated conditions)
• Cord Length: Free end,
• Adapt the socket type: IEC 62196-2

Parameters

• Rated current: 16A/32A
• Operation voltage: 240/415V AC
• Insulation resistance: > 1000MΩ (DC500V)
• Terminal temperature rise: < 50K
• Withstand voltage: 2000V
• Vibration resistance: Meet JDQ 53.3 requirements
• Contact impedance: 0.5mΩ Max
• CE & TUV approved

Materials

• Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)
• Contact Pin: Copper alloy, silver plating
• Sealing gasket: rubber or silicon rubber

Recommended Cable (available on order by email)

• Cable: (TUV,UL Rated)
• 32A: 3*6.0mm2+2*0.5mm2
• Cord length: Free End, 3m(9.8ft), 5m(16.4ft)

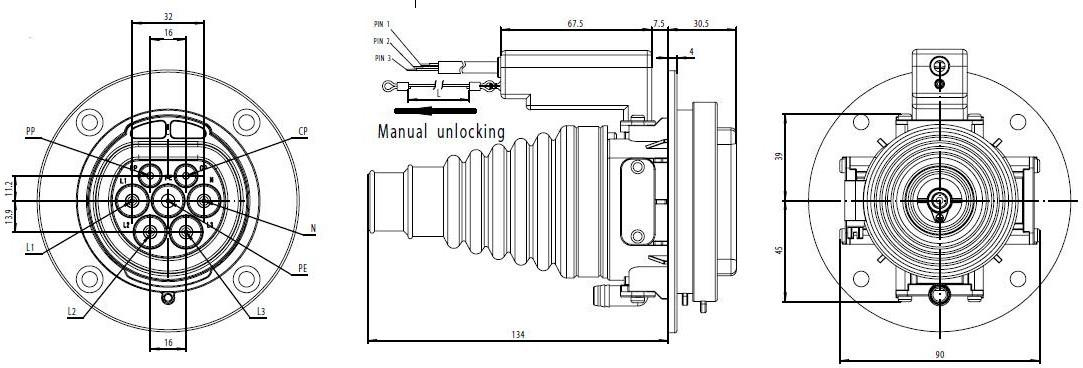

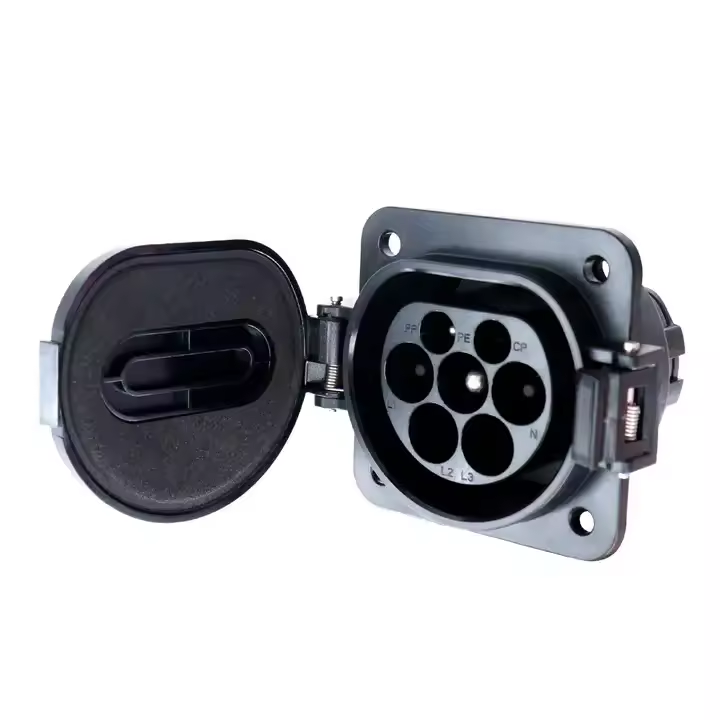

Type 2 EV AC Male Socket/Inlet For EV Side 16A 32A 250V/415V With Lid IEC62196-2 Connector Car Accessories Images
